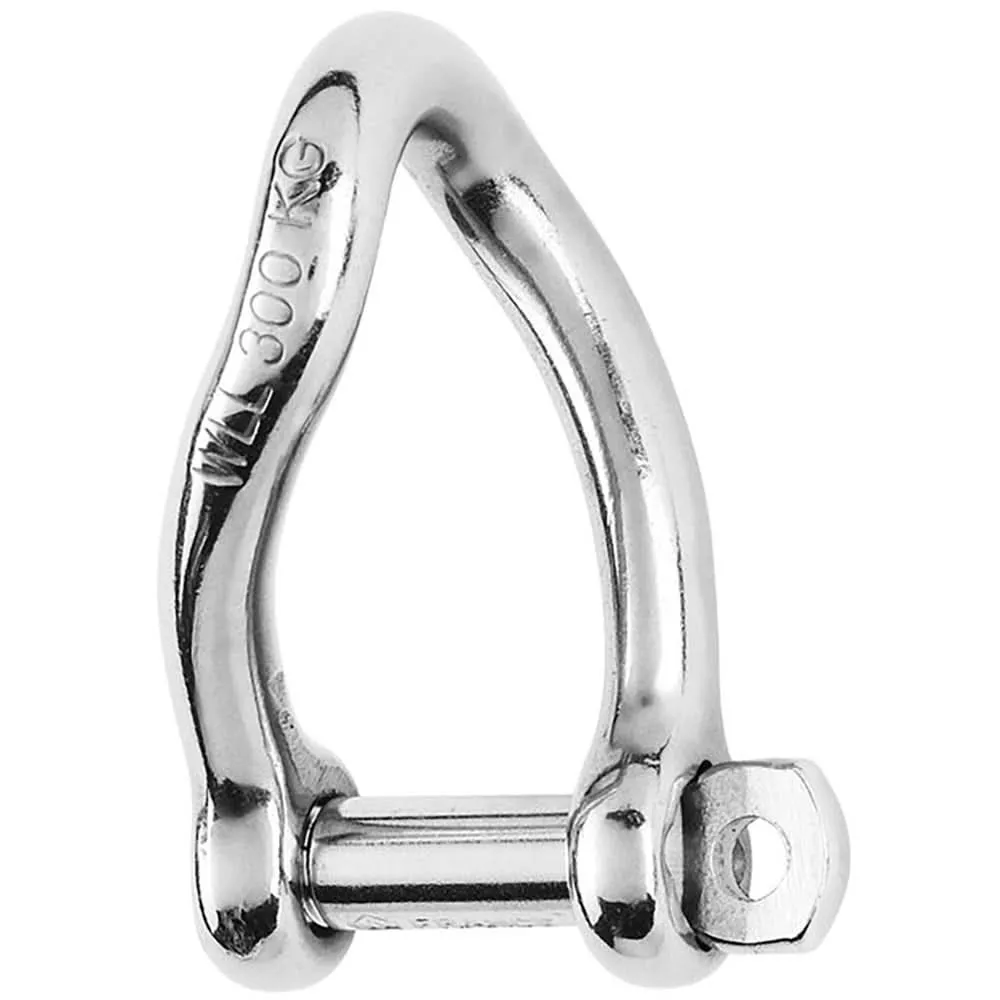

Wichard Self-Locking Twisted Shackle – 10mm Diameter – 13/32″ – 1225

Description

Wichard Self-Locking Twisted Shackle – 10mm Diameter – 13/32″ – 1225

Self-Locking Twisted Shackle – Diameter 10mm – 13/32″

Features:

• Self-locking twisted shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Perfect for applications where a90° angle twist setup is required
• Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 3170 / (kg) 1440
• Breaking load: (lb) 9920 / (kg) 4500
• Weight: (lb) 0.28 / (g) 127

Dimensions:

• A: (inch) 1 31/32″ / (mm) 50
• B: (inch) 25/32″ / (mm) 20
• C: (inch) 25/64″ / (mm) 10
• D: (inch) 3/4″ / (mm) 19
• D diameter: (inch) 25/64″ / (mm) 10
• E: (inch) 23/64″ / (mm) 9
• F: (inch) 2 29/32″ / (mm) 74

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Product : WICHARD 13/32 SELF LOCKING TWISTED SHACKLE
Manufacturer : Wichard Marine
Manufacturer Part No: 01225
