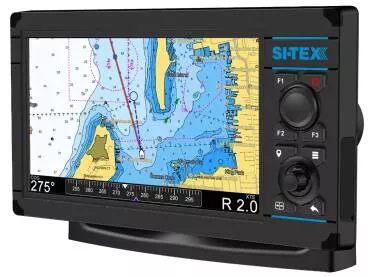

SI-TEX NavPro 900 Series GPS Chart Plotter• NAVPRO12US

Description

The NavPro 900 MFD offers optional high-resolution WI-FI radar that makes it easy to install and rig SI-TEX’s 4 Kilowatt, 24-inch compact radome on just about any vessel. By mounting and wirelessly syncing the SI-TEX MDS-12 Network Radome to a NavPro unit, boaters can turn these popular and affordable MFDs into powerful 36-Newtonmeter range radars that deliver excellent target resolution and a range of features boaters expect from professional-grade SI-TEX radars. Overlaying radar targets onto the feature-rich Polaris Charts provides navigators with enhanced situational awareness and safety, even in the most challenging conditions.

• 9” Hi-Res. Hybrid Touch Screen Display

• Innovative new Yoke & Swivel mount

• NMEA-0183 & NMEA2000 Interfacing

• WIFI Interface

• Automatic Software Updates when in WIFI Coverage

• Captain Cloud automatically backs up all User Data to a Free Cloud Based Data backup Service for Waypoints, Marks, Events, and Track memories when in WIFI coverage.

• Mirror Screen Capability via Bluetooth connection allows user to download mirror app to his Android based smart phone and view and control the NavPro 900 from Smart Phone.

• Optional dedicated Remote Control Available

• Designed for easy flush mount without any special kit needed

• New CHIRP Sounder with selectable 300w, 600w, & 1kW outputs (NavPro-900F version)

• CHIRP Sounder has scroll back screen memory that allows user to quickly scroll back and pickoff a location to mark on Nav Chart.

• Uses the popular AIrmar CHIRP Transducers with TX ID will automatically setup the Sounder transducer interconnect

• Adapters available to allow the unit to be installed on older non-CHIRP transducers.

• Internal Hi-Resolution 18Hz 72 Channel GPS Receiver & Antenna

• New User interface makes the unit very easy to operate and navigate with

• Full AIS Integration when interfaced to an AIS Unit

SPECIFICATIONS

• LCD Display Size 9.0”

• Display Brightness 1,100 NITS

• Display Resolution 800×480

• Touch Screen – Yes, Capacitive Multi-Touch

• Keyboard Backlight – Yes

• Operating Voltage 10 to 35 VDC

• GPS Receiver – Built-In High Resolution 18Hz 72 Channel GPS/GLONASS External

• GPS – Yes, optional via 6 pin Connector

• Network Connections – NMEA-2000 (Optional Cable Required)

• Dual NMEA-0183 Input/Output Ports

• WIFI Connection – Yes

• Bluetooth Connection – Yes

• IPX6 Waterproof Rating

• Operating Temperature range -10’C to +60’C

• Dimensions – 10.9” Wide x 6.8” High x 3.7” Deep 2 Year Warranty

INCLUDED IN THE PACKAGE:

• NavPro 900 Display Unit

• Polaris USA Chart Card

• Mounting Bracket

• Mounting Screws

• Combination Power Data Cord

• Sun Cover

• Installation & Operation manual
