Lenco 9″ x 14″ Airboat Trim Tab Kit without Switch – 15112-101

Description

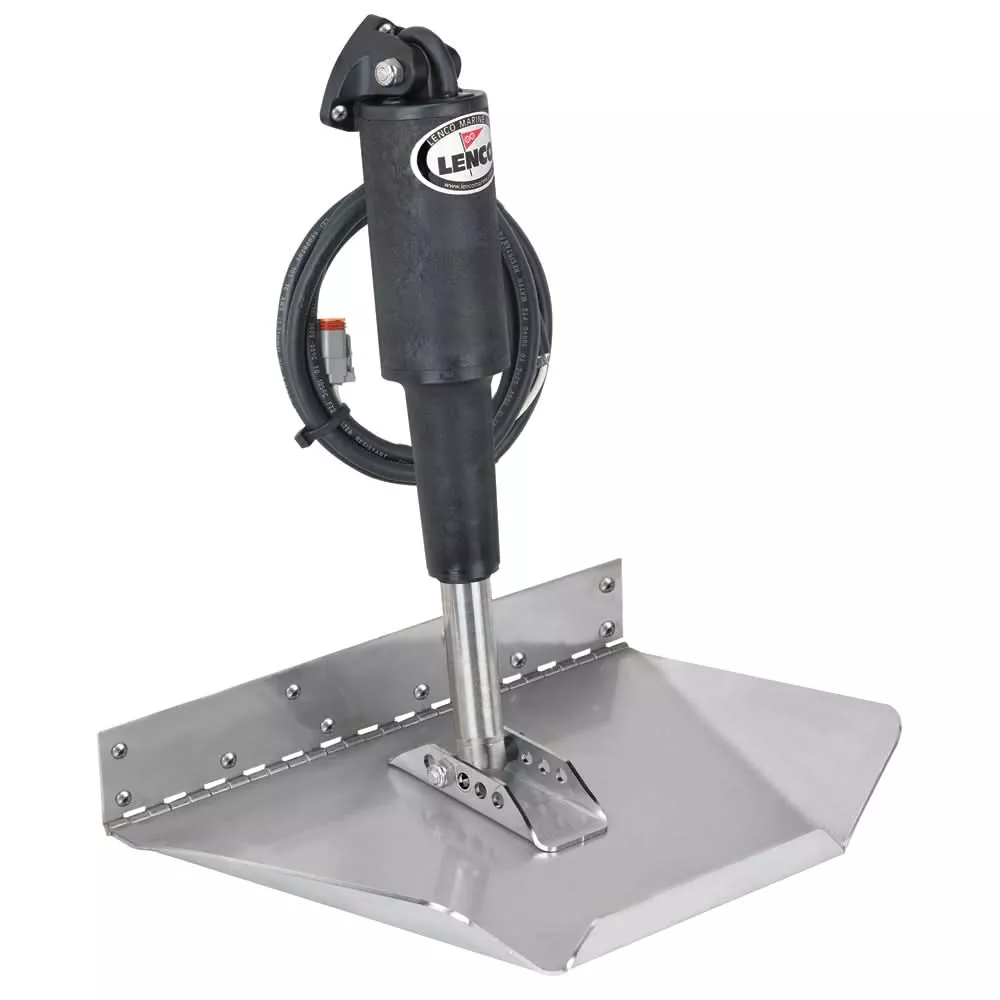

Lenco 9″ x 14″ Airboat Trim Tab Kit without Switch – 15112-101

Improve the performance and handling of your airboat with the Lenco 9″ x 14″ Airboat Trim Tab Kit (15112-101). Designed specifically for airboat applications, this high-performance trim tab system helps reduce porpoising, increase lift, and deliver smoother, more controlled operation in shallow water and high-speed conditions.

Constructed from 12-gauge 304 stainless steel, the trim tab blade offers exceptional durability and corrosion resistance for demanding marine environments. The short Extreme Duty electric actuator provides fast and precise response, while the unique mounting system allows maximum plate movement and a safe upward position when operating in shallow water or on dry surfaces.

The 9″ x 14″ planing surface is engineered to optimize lift while minimizing drag, improving overall boat stability and fuel efficiency. Hydrodynamically designed side protrusions help prevent the trim tab from digging in during aggressive turns, enhancing both safety and handling.

This kit includes everything needed for installation except the switch, making it ideal for custom airboat setups or replacing existing trim tab components.

Key Features

• Airboat-Specific Design: The 9″ x 14″ 12-gauge stainless steel blades are sized perfectly to provide lift without adding unnecessary drag.

• High-Torque Actuators: Includes Lenco’s legendary 12-volt fast-acting actuators for immediate response when you need to adjust your pitch.

• Corrosion Resistance: Features all-stainless steel construction and high-impact custom-molded components to withstand harsh marsh and saltwater environments.

• Low Maintenance: The electric system is completely submersible and oil-free, eliminating the leaks and mess associated with hydraulic systems.

What’s In The Box

• 1 each of 12-gauge 304 stainless steel trim tab plane
• 1 each of 15055-001 XD actuator with 6′ lead and Deutsch plug
• 1 each of 30133-002 14′ actuator extension wiring harness
• 1 each of 15085-001 (116) upper mounting bracket with gland seal
• 1 each of the Lenco owner’s/installation manual
• All necessary stainless steel mounting hardware

Note: This kit is the “Without Switch” version. It is intended for replacement or for users who wish to choose a specific Lenco tactile, integrated, or LED indicator switch separately.
