Lectrotab 12 V Heavy Duty Tab Actuator – 23′ Cable – A-BK-43

Description

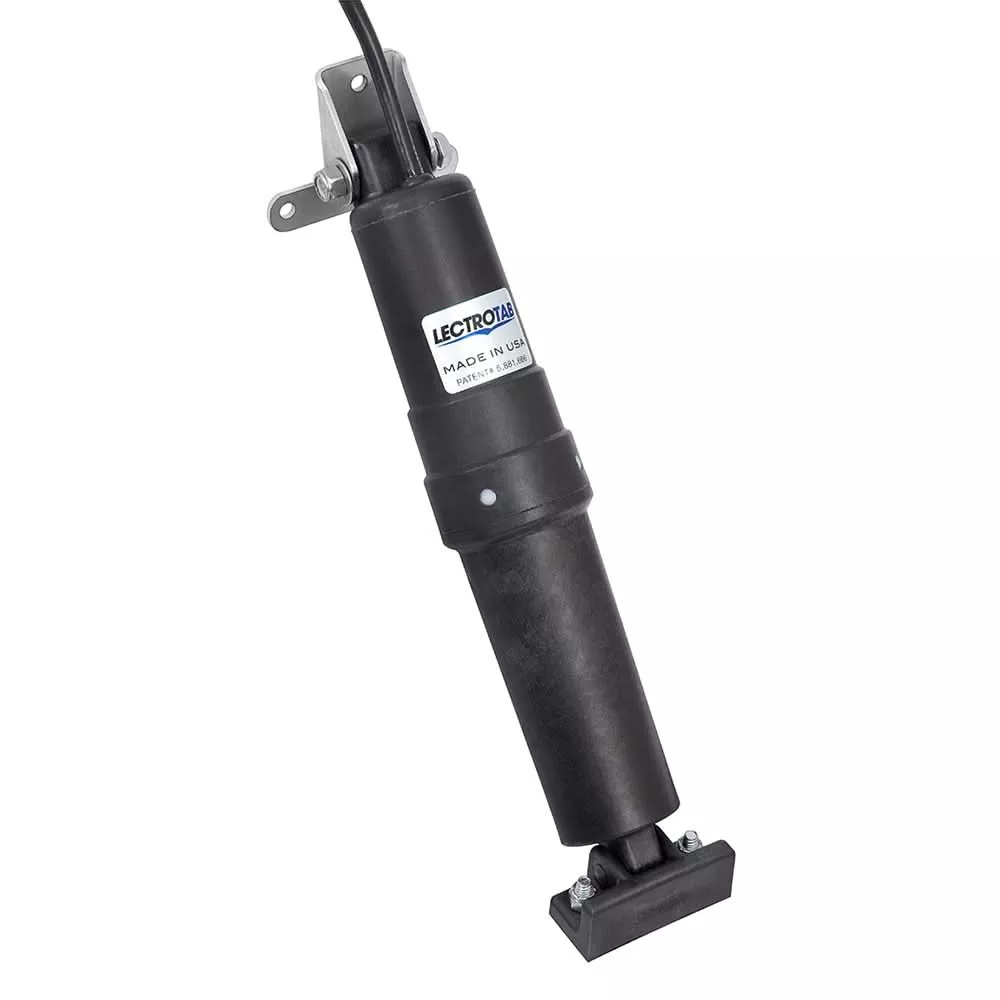

Lectrotab 12V Heavy Duty Trim Tab Actuator – 23′ Cable – A-BK-43

Upgrade your boat’s trim tab system with the powerful and reliable Lectrotab 12V Heavy Duty Tab Actuator (A-BK-43). Engineered for high-performance marine applications, this actuator delivers smooth, precise tab adjustments to improve boat stability, fuel efficiency, and overall ride quality.

Built with heavy-duty, corrosion-resistant materials, the A-BK-43 is designed to withstand harsh saltwater environments while providing long-lasting durability. The included 23-foot cable offers flexible installation options, making it ideal for a wide range of boat sizes and configurations.

Featuring a 12-volt operation, this actuator integrates seamlessly with Lectrotab trim tab systems, ensuring fast response and consistent performance in all conditions.

Key Features:

• Fail-Safe Protection: The upper ram seal location is engineered so it cannot be damaged by barnacle growth or fouled rams, ensuring long-term reliability.

• Internal Brake System: Prevents unwanted tab movement while the vessel is underway or backing down, maintaining your precise trim position.

• Self-Contained Installation: The entire assembly is sealed; no hydraulic pumps or fluid lines need to be installed inside the boat.

• Quiet Operation: Precision-engineered components provide nearly silent adjustment compared to traditional hydraulic units.

• 12V heavy-duty trim tab actuator for reliable performance

• Improves boat stability, handling, and fuel efficiency

• Includes 23-foot cable for flexible installation

• Durable, marine-grade corrosion-resistant construction

• Smooth, precise actuator movement for optimal trim control

• Compatible with Lectrotab trim tab systems

• Ideal for saltwater and freshwater applications

Key Specifications

• Voltage: 12V DC

• Stroke Length: 2.25″ (57 mm)

• Cable Length: 23′ (7 m)

• Load Capacity: Fully tested to push 1,000 lbs of force

• Housing: Non-metallic, permanently sealed, and corrosion-free

• Stroke Time: 8 seconds (recommended for smoother boat response)

In the Box

• (1) Heavy-Duty Actuator Unit with 23′ Cable

• (1) 12-Gauge Stainless Steel Upper Mounting Bracket

• Upper Mounting Hardware: Includes bolt, nut, and washer

• Lower Mounting Hardware: Includes bolt, nut, spacer, and washer

Enhance your boat’s performance with the trusted strength and precision of the Lectrotab A-BK-43 Heavy Duty Actuator—built for dependable trim tab operation in demanding marine environments.

Manufacturer : Lectrotab
Manufacturer Part No : A-BK-43
