Faria Platinum 4″ Multi-Function – SpeedometerFuel [22015]

Description

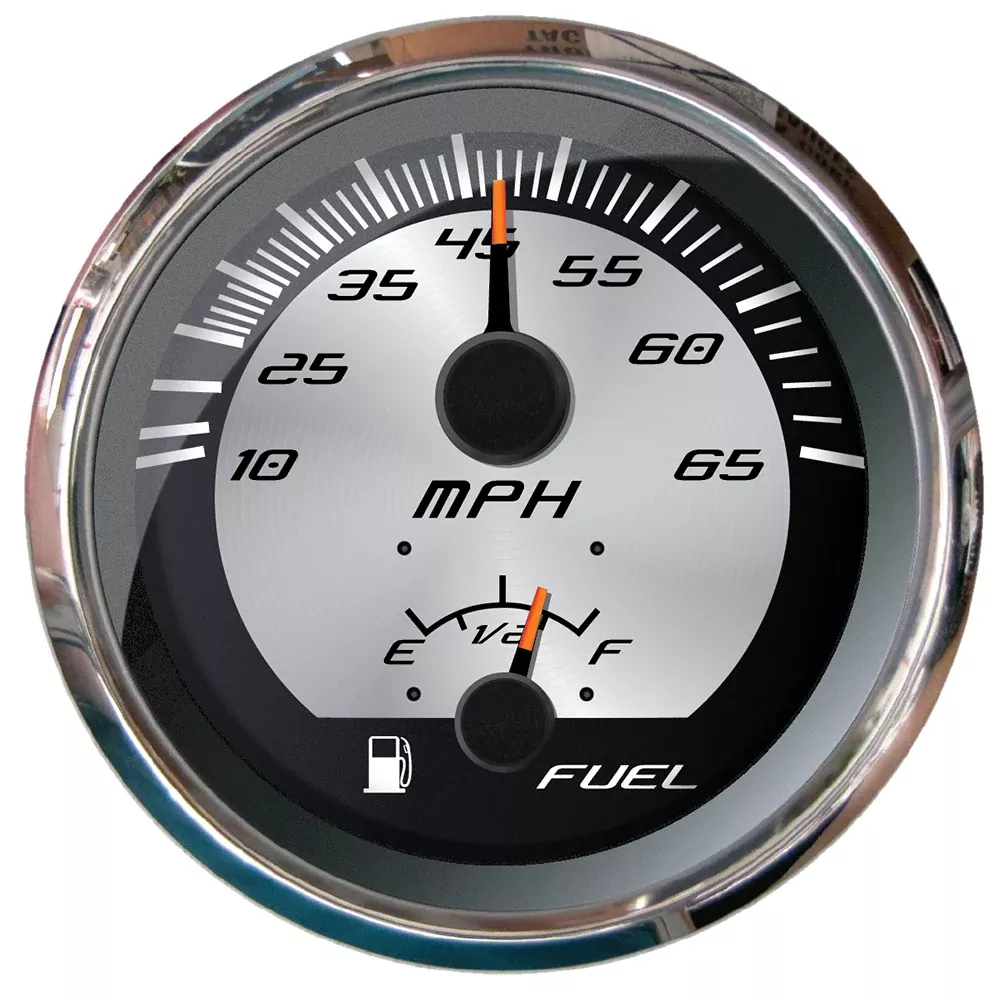

Platinum 4″ Multi-Function – Speedometer & Fuel

Faria Beede’s Platinum Series Instruments feature spun aluminum gauge dials with custom graphics and a polished stainless steel bezel providing a rugged, elegant look.

All Platinum Series gauges feature Faria’s revolutionary domed glass Fog-Resistant lens. These lenses shed condensation and resists scratching and other types of fouling common in the marine environment.

Multi-Function Gauge Displays:

• Fuel (E-1/2-F)
• Speedometer (Mechanical) (65 MPH)

∗ Pitot tube sold separately.

4″ – Hole size: 3.375″ (85mm)

Specifications:

• Domed Glass Anti-fog, Scratch Resistant Lens
• Stainless Steel Bezel
• Blue LED Illuminating around the Perimeter of the Dial
• Illuminated Backlit Fire-Orange Tip Pointer

Factory P/N GS0075

*Sold as an Individual

*Gauge Cover not Included

Specifications:

• Voltage – Input Range (Volts): 12/24 V
• Series: Platinum
• Gauge Type: Multifunction
• Gauge Size: 4″
• Box Set: No
• Box Dimensions: 5″H x 6″W x 6″L WT: 0.9 lbs
• UPC: 759266220157
