Blue Sea 4309 WeatherDeck 12V DC Waterproof Switch Panel – 8 Position – 4309

Description

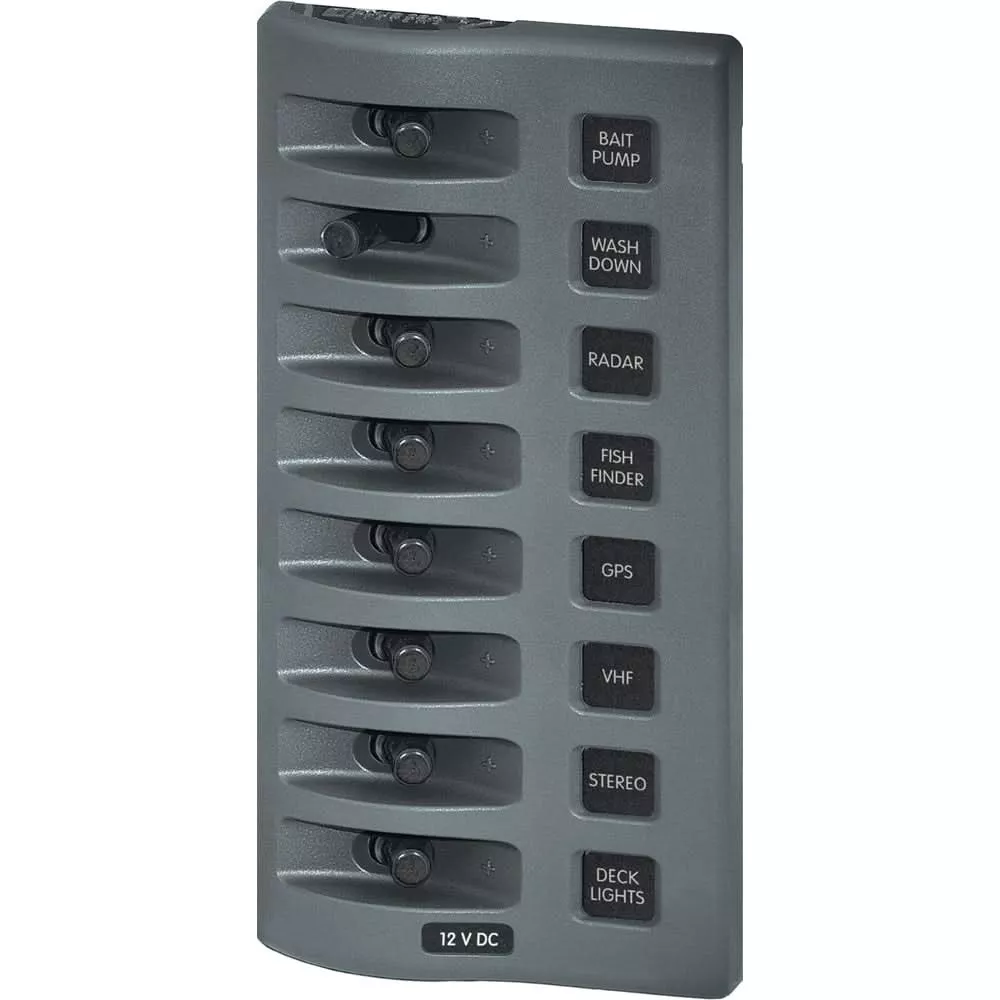

Blue Sea 4309 WeatherDeck 12V DC Waterproof Switch Panel – 8 Position

The Blue Sea Systems 4309 WeatherDeck Switch Panel is a rugged, waterproof solution for managing onboard electrical circuits in harsh marine and outdoor environments. Designed for 12V DC systems, this 8-position switch panel provides reliable control of lighting, accessories, and equipment while protecting critical connections from water, spray, and corrosion.

Built to withstand demanding conditions, the WeatherDeck panel features marine-grade construction with a sealed design ideal for open cockpits, consoles, and exposed installations. Each switch offers smooth, dependable operation, making it easy to control multiple circuits from a centralized, organized panel.

Trusted by professional installers and boat owners alike, Blue Sea Systems products are known for safety, durability, and compliance with marine electrical standards. The 4309 WeatherDeck panel is perfect for boats, RVs, utility vehicles, and off-road applications where moisture protection is essential.

Key Features

• Extreme Waterproofing: The panel front is rated IP67, meaning it is protected against immersion in water up to 1 meter for 30 minutes when properly mounted with its gasket.

• Accidental Switching Protection: Features integrated switch guards that prevent the toggles from being bumped or moved unintentionally.

• Flexible Orientation: The versatile design allows the panel to be mounted in four different orientations, giving you more freedom for dash or console layout.

• UV Resistant Construction: The faceplate is made from UV-stabilized reinforced polycarbonate that will not deteriorate or discolor under the intense sun and salt spray.

• Simplified Design: This “Switch Only” model eliminates the cost of backlighting and circuit protection, perfect for vessels that already have a separate fuse block or breaker system.

Technical Specifications

• Positions: 8 ON-OFF SPST Toggle Switches.

• Nominal Voltage: Compatible with 12V DC and 24V DC systems.

• Maximum Amperage: 15A @ 12V DC per circuit; 45A cumulative panel rating.

• Dimensions: 7.70″ Height x 3.88″ Width x 2.50″ Depth.

• Material: Heavy-duty reinforced polycarbonate.

What is in the Box

• 8-Position Panel Assembly: Includes 8 pre-installed toggle switches with black waterproof boots.

• Watertight Mounting Gasket: Ensures a leak-proof seal against the mounting surface.

• Waterproof DC Label Kit: Includes a set of 30 common marine labels to identify your circuits.

• Mounting Screws: Stainless steel hardware for a secure, corrosion-free installation.

Pro Tip for Installation

Since the 4309 model does not include internal circuit protection, it is highly recommended to pair it with a Blue Sea ST Blade Fuse Block. This setup provides the necessary safety for your electronics while keeping the switch panel compact and affordable.
